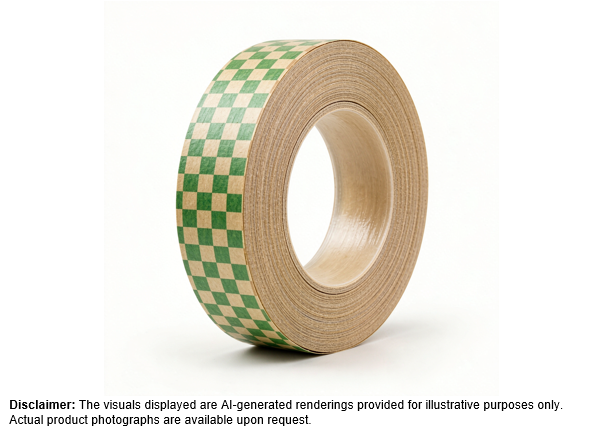

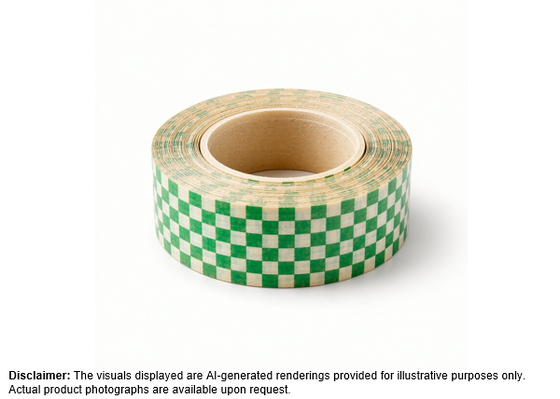

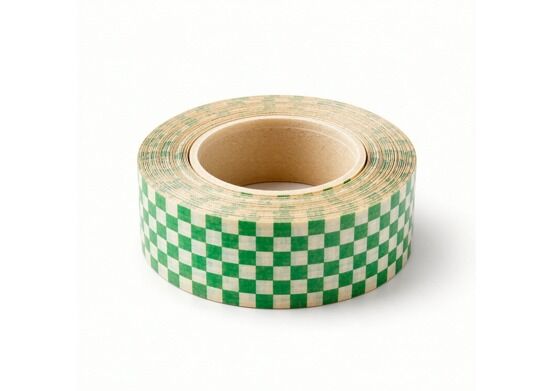

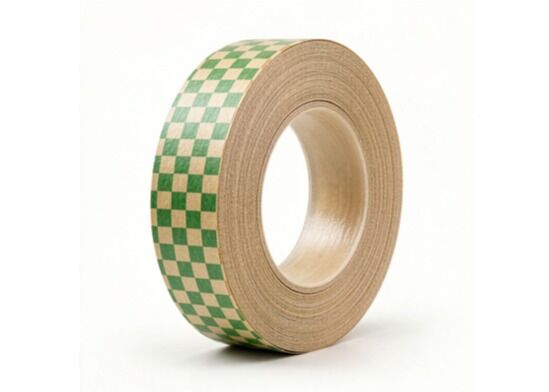

3M 410M. Nastro di carta a doppio lato. 0.15 mm di spessore. Verde.

Descrizione del prodotto

3M 410M è un double-coated heavy/stiff paper PSA tape, nominale 0.15mm / about 5?? 6mil without liner,coated both sides with natural rubber (regional TDS lists 850 or 860 / rubber-resin) and wound with a 54# green-plaid densified kraft liner (~0È per lo splicing e il core-starting di carta, film, foglio e tessuto, il montaggio di piatti di gomma/fotopolymer per stampare cilindri, l'attaccamento di maniche da golf, la tenuta temporanea in fresatura,e light indoor nameplate/label/small-part fixingLa carta pesante dà stabilità dimensionale e hand-tear; la gomma naturale dà un'elevata accelerazione iniziale su molte superfici.- Non per il carico strutturale.Non impermeabile, non esposizione esterna a lungo termine.

Struttura

Caratteristiche

• Heavy paper double-coat natural rubber: 0.15mm paper carrier stiffer and more dimensionally stable than thin tissue (9448A), hand-tear vs PET film, thinner/no gap-fill vs foam tape.
• High initial tack, press-and-hold: 850/860 natural rubber grabs paper/foil/film/metal/some plastics instantly;meglio per lo splice/plate/temp-fixturing interno che tessuto acrilico che costruisce la forza finale lentamente..
• 54# green-plaid kraft liner: ~0.08mm densified liner for clean die-cut, no edge curl, humidity-edge stability; easier front/back ID than plain white kraft or glassine.
• Hand-tear plus die-cut: field splicing/plate/temp jigs by hand; high-volume small parts on auto-dispensers; serves both bench and line.
• Splice/core-start oriented: papers, films, foils, fabrics splice and core-start are primary; start/end tabs and roll changes without slip, better than single-coat or office double-coat.
• Print-plate conformable: rubber/photopolymer plates to cylinders with uniform thin bond and easier plate removal; più sottile di VHB/foam (no OD build), più pulito di spray adhesive.
• Solvent-free, light duty: solvent-free make; general industry/aircraft MRO aid, light fixing/temp hold/label rework more reversible than structural adhesive.
• Clear temperature boundary: international long 66°C/short 82°C; China page max 93°C/min -40°C; best 21°38°C, no initial apply below 10°C.Weaker long-heat/aging than acrylic double-coat but faster tack and lower cost. Più debole a lungo-calore/invecchiamento di acrilico double-coat, ma più veloce e meno costoso..

Applicazioni

• Splicing papers/films/foils/fabrics: press, slitter, rewinder core-start, roll-change splice and end-tab.
• Print plate mounting: flexo/letterpress rubber or photopolymer plates to cylinders; thin double bond, accurate register, easy plate removal.
• Etichette e schede di fine: core-start/end labels on roll stock, temporary storage labels, light indoor nameplates.
• Griffe da golf: posizionamento di avvolgimento grip-to-shaft; paper conforms, fast tack, minimal OD build.
• Milling/temporary fixturing: temporary hold during machining/assembly jigs; removable without drilling/welding.
• Light indoor mounting: office/display/packaging small parts, paper boards, film swatches, light wire clips, sample cards.
• Printing/packaging prototyping: carton register, hot-stamp/window samples, short-run plate and prototype splices instead of spray adhesive.
• MRO/general-industry aid: aircraft-maintenance and general industrial temporary ID, light harness hold, parts-sorting tack (not primary insulation, not structural).
